MESSENGER

Mercury Laser Altimeter

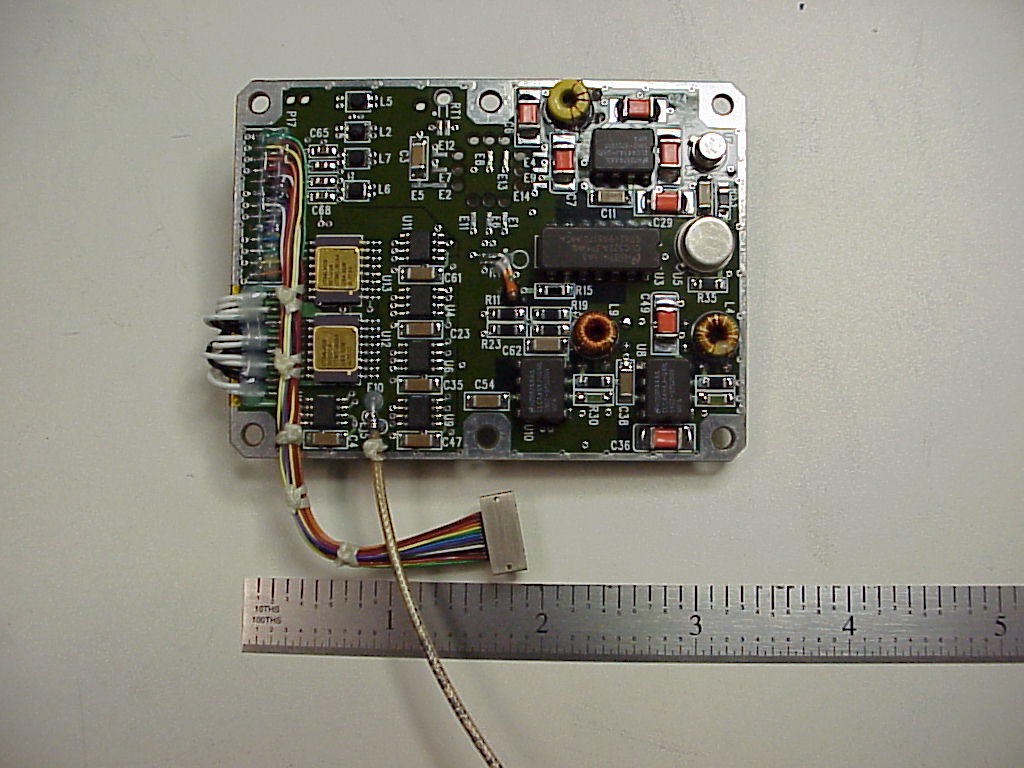

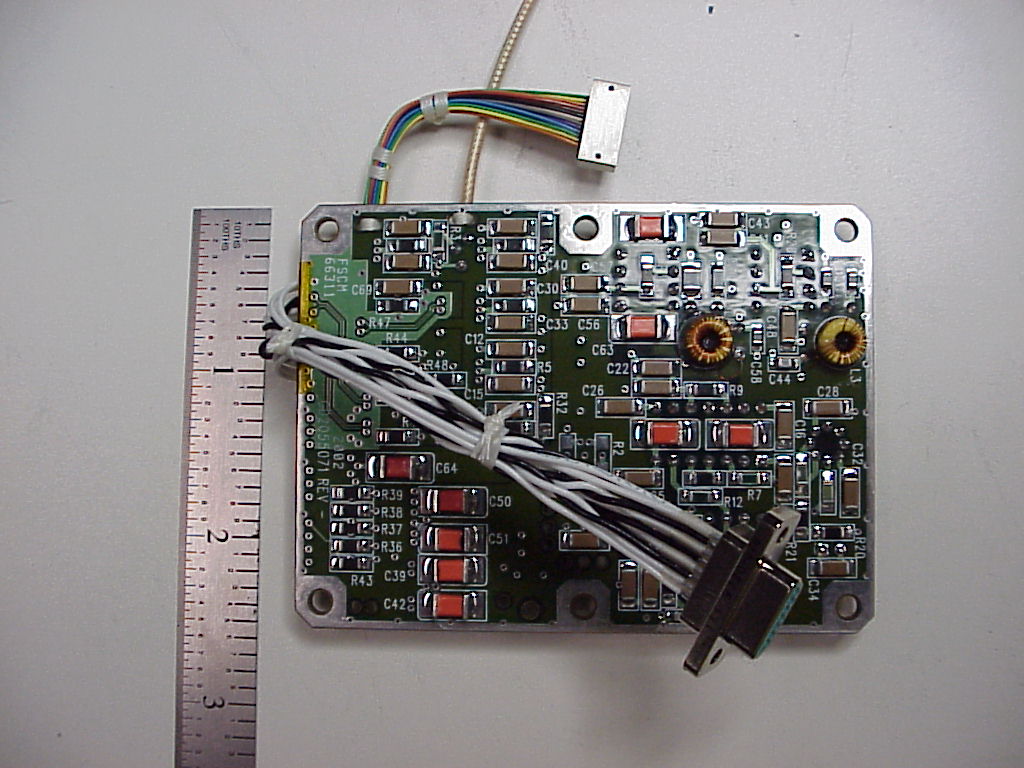

Detector Card (Engineering Model)



February 12, 2003



Mass ~51 g
Power
+5 VDC: 138 mA
-5 VDC: 92 mA
550 VDC: 18.3uA
Functions Detector variable gain post-amplification; 3 filter channels: 10ns FWHM, 60ns FWHM, 270ns FWHM; threshold discriminator with LVDS output for each channel--HI and LO threshold channels for the 10ns filter.
Performance Gain: variable from 0.1 to 10. Sensitivity: 378KV/W. NEP: .036pW/rt-Hz.
Design/Analysis Team Jerry Karsh, Xiaoli Sun
PCB Layout Banks Walker
Assemblers
Polymerics
Quality Assurance
