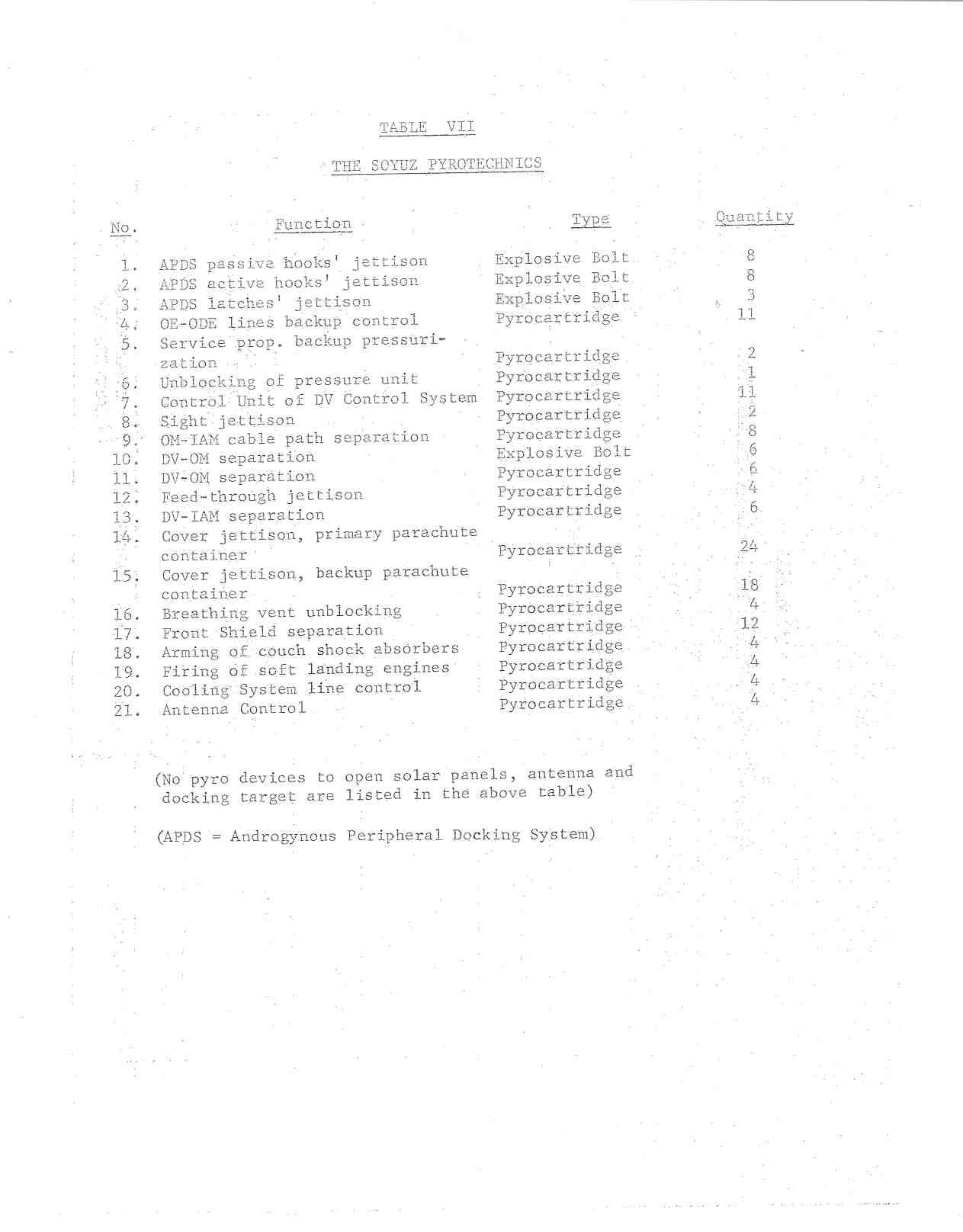

TABLE VII

THE SOYUZ PYROTECHNICS

No.

         Function

      Type

 Quantity
1. APDS passive hooks' jettison Explosive Bolt 8
2. ADS active hooks' jettison Explosive Bolt 8
3. APDS latches' jettison Explosive Bolt 3
4. OE-ODE lines backup control Pyrocartridge 11
5. Service prop. backup pressurization Pyrocartridge 2
6. Unblocking of pressure unit Pyrocartridge 1
7. Control Unit of DV Control System Pyrocartridge 11
8. Sight jettison Pyrocartridge 2
9. OM-IAM cable path separation Pyrocartridge 8
10. DV-OM separation Explosive Bolt 6
11. DV-OM separation Pyrocartridge 6
12. Feed-through jettison Pyrocartridge 4
13. DV-IAM separation Pyrocartridge 6
14. Cover jettison, primary parachute container Pyrocartridge 24
15. Cover jettison, backup parachute container Pyrocartridge 18
16. Breathing vent unblocking Pyrocartridge 4
17. Front Shield separation Pyrocartridge 12
18. Arming of couch shock obsorbers Pyrocartridge 4
19. Firing of soft landing engines Pyrocartridge 4
20. Cooling System line control Pyrocartridge 4
21. Antenna Control Pyrocartridge 4

(No pyro devices to open solar panels, antenna and
docking target are listed in the above table)

(APDS = Androgynous Peripheral Docking System)

From "annual report to the nasa administrator by the aerospace safety advisory panel," part I - apollo soyuz test project, section 2 - summary of information developed in the panel's fact-finding activities.  february 1975.
