NASA SP-504: Space Shuttle Avionics System

Section 4  System Mechanization/Operation


A number of non-GNC functions included in the redundant-set software perform critical sequencing and other services for nonavionics subsystems. These functions, conducted using either the master events controller or the flight-critical MDM's as the command transmission media, use the system components shown in figure 4-31. The sequencing functions can be classified as (1) mission events that are nonrepeating but predictable and that require software to initiate and/or to control hardware functions or (2) special computations made to reduce crew workload. Examples of the current set of such functions include

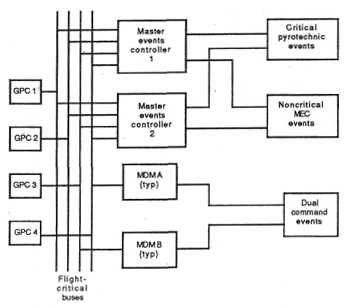

Figure 4-31. - Sequencing configuration.
